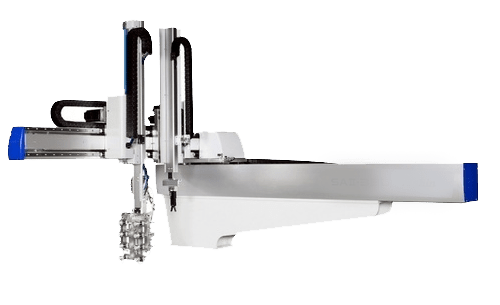

HDP Robot
Product Specification Sheet
| Robot Type | HDP Blow Moulding Machines | Working Strokes | Max Applicable Weight | Min Cycle Time | Stop Mould Time |
|---|---|---|---|---|---|
| SIDE 1 | 100 / 250 ton | X = 700 mm (vertical)
Y = 500 mm (Longitudinal) Z = 1400 mm (trasversal) |
4 Kg | 2.5 sec | 0.4 sec |
| SIDE 2 | 250 / 400 ton | X = 700 mm (vertical)
Y = 550 mm (Longitudinal) Z = 1800 mm (trasversal) |
4 Kg | 2.7 sec | 0.4 sec |
Solutions
Retrofitting your existing HDP blowing machines
Features
- Employ console model installation, rendering machine height lower, separate from injection molding machine without mechanical vibration frequency interfere.
- Servo motors control the transmission parts precision and rapidly
- Servo motors driven stacking units
- Conveyor and safety gaurding included
Application for PET machine
- The IML10 series robot is designed for extremely short cycle time of mould opening less than 2 seconds and under.
- The IML-10 series improve the production efficiency
- Automates labelling and secures a new standard for future needs of most company
